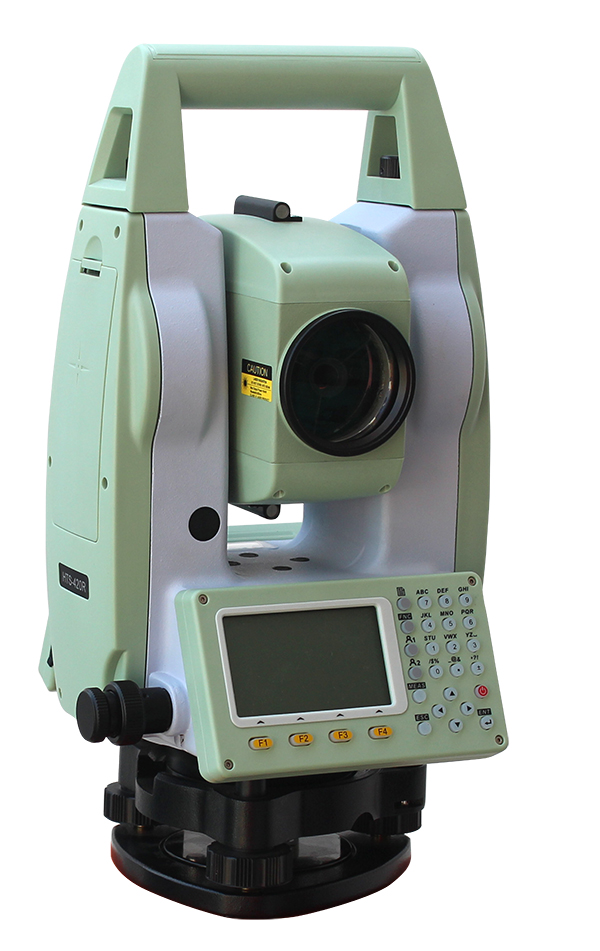

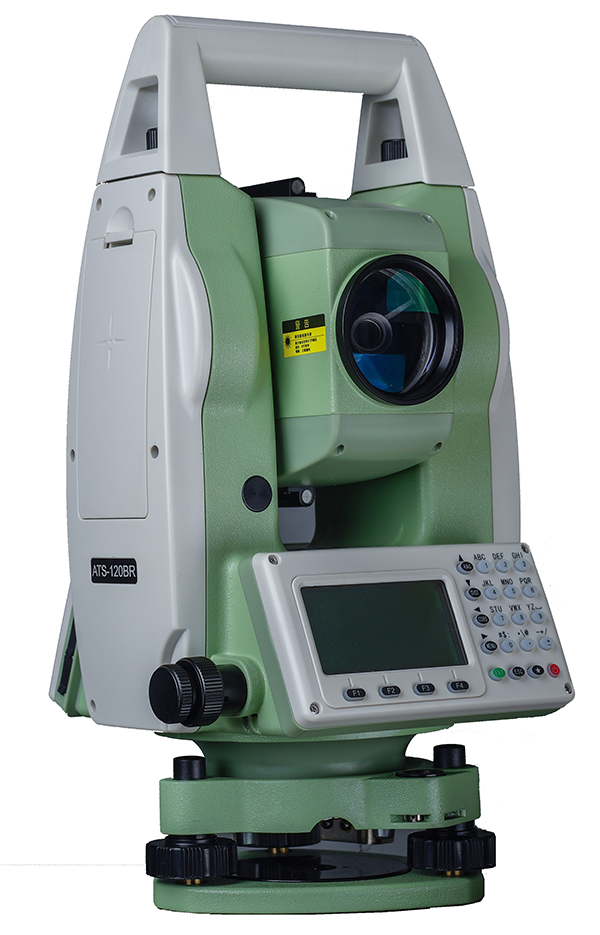

Total Station

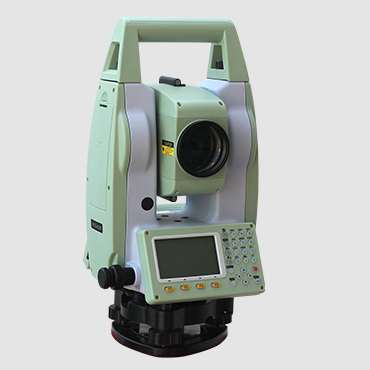

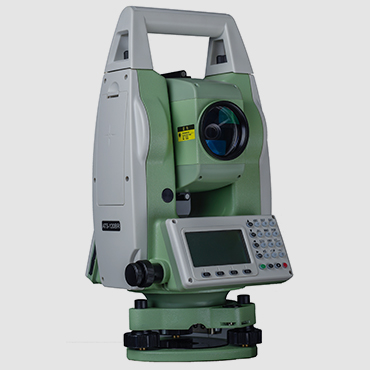

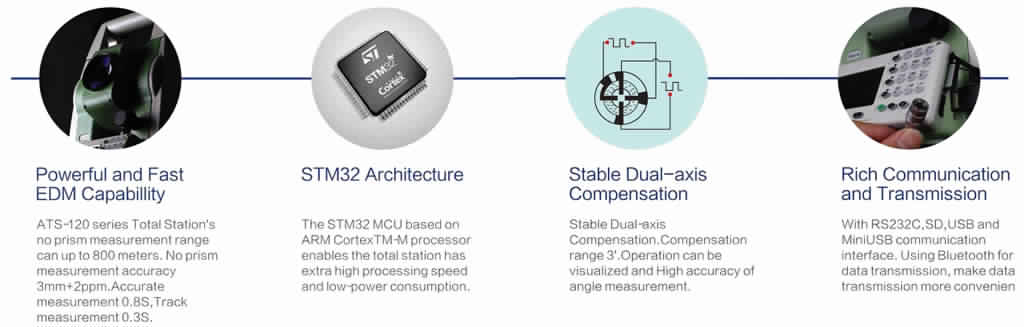

A total station is an electronic/optical instrument used in modern surveying. The total station is an electronic theodolite (transit) integrated with an electronic distance meter (EDM) to read slope distances from the instrument to a particular point.
Total Station systems has the advantages such as high efficiency, simplicity and convenience in operation, low power consumption, small weight and sizes, an opportunity of use on a tripod, in a backpack.
| Description | HTS-220R |
HTS-420R |
HTS-420L6 |
| Angle Mesasurement | |||
Measurement Method |
Absolute Encoding | ||
Minimum Readout |
1” | ||
Accuracy*1 |
2” | ||
| Telescope | |||
Magnification |
30X | ||
Field of view |
1°30’ (2.7m at 100m) | ||
Minimum Focusing Distance |
1.5m | ||
Reticle |
illuminated | ||
| Compensator | Liquid Tilt Sensor | ||
System |
Single Axis |
Dual Axis |
Dual Axis |
Working |
±3’ | ||
Setting Accuracy |
1” | ||
| Distance Measurement (Reflector Less) | |||
Reflector Less Range*2 |
350m |
350m |
600m |
Single Prism |
5500m | 7500m | |
Accuracy |
3mm+2ppm | ||
Measuring |
1.5s | ||
| Distance Measurement (With Reflector) | |||
Single Prism Under good condition*3 |
2500/3000m |
3000m |
4000/5000m |
Reflective Sheet |
800m | 1000m | |
Accuracy |
2mm+2ppm | ||
Measuring Time (Fine/Quick/Tracking) |
1.5s/1.2s/0.8s |
1.3/1s/0.5s |
1s/0.8s/0.5s |
| Communication | |||
Wireless Communication |
None | Bluetooth | |
Interface |
Standard RS232,SD-Card*4, Micro USB | ||
Internal Data Memory |
Approximate 20000 Points | ||
Data Format |
ASCII | ||
| Operation | |||
Operating System |
Real Time Operating System | ||
Display |
Gray and white Display with adjustable contrast 280 x 160 pixel | ||
Keyboard |
2 Sides alphanumeric backlit crystal keyboard | ||
| Laser Plummet | |||
Type |
Laser point, 4 brightness level adjustment | ||
Centering Accuracy |
1mm at 1.5m Instrument height | ||
| Environmental Condition | |||
Operating Temperature |
-20°c to +50°c | ||
Storage Temperature |
-40°c to +70°c | ||
Dust & Water proof( IEC60529 standard ) |
IP55 |
IP65 |
|
| Power Supply | |||
Battery Type |
Rechargeable Li-Ion Battery | ||
Voltage/Capacity |
ZBA-400 7.4V DC / 3000mAh | ||
Operating Time with ZBA-400 |
Optimal 16hr*5 (continuous angle measurement every 30 sec. / 10 hr Typical) | ||
Measuring Time |
Approx. 12000 times | ||
| Weight | |||
Including Battery and Tribach |
5.5 Kg Approx. | ||
- Standard Deviation based on ISO17123-3
- Calculated by Kodak gray card white side (90% Reflective), Exact distance depends on measuring object, observation and environmental condition.
- Good Condition : No haze, visibility about 40Km, Moderate Sunlight.
- Maximum extension up to 32GB
- New Battery at 25°c, 24 hour continuously angel measurement mode.
