Ranging Rods


AKI's Ranging Rods are produced from finest quality conduit pipes. We manufactre two types of Ranging Rods such as Screw Type & Socket Type. Each section is painted alternately with red and white paints at 20 cms intervals. Fitted with sharp pointed shoe at the bottom to spear it easily on ground.

Special Features:-

  • International Standard, manufactured under strict quality control management system.
  • The Ranging rod are of High Accuracy, durability and workmanship.
  • Strong High Tensile extruded steel alloy pipe is used.
  • Painted with long lasting water proof paints.
  • Brightly coloured for high on site visibility.

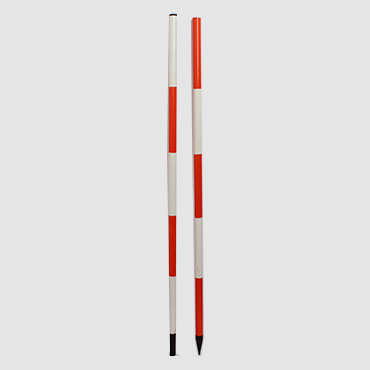

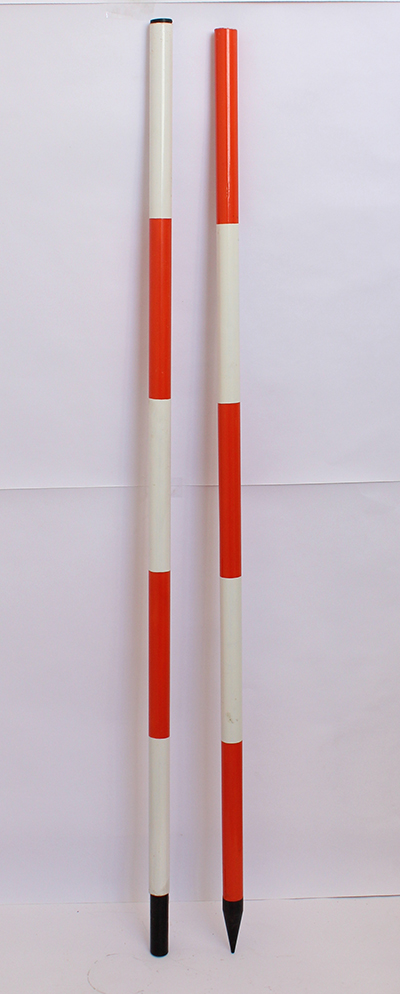

Socket Type Ranging Rods

Socket Type Ranging Rods

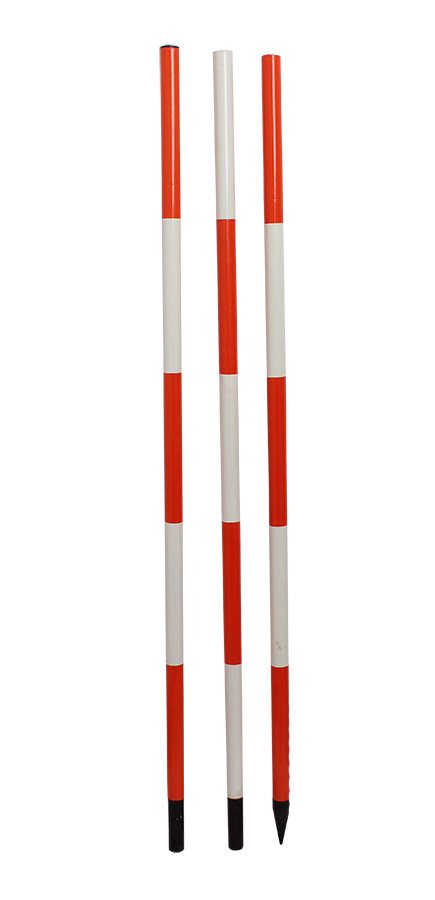

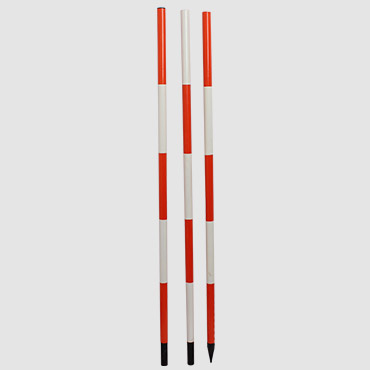

Screw Type Ranging Rods

Screw Type Ranging Rods


TECHNICAL DATA

Model Length Per Sec. (Mtr) Extended Length (Mtr) Nos. of Sec. Diameter of the Sec. (mm) Thickness of the Sec. (mm) Weight (Approx) (Kg.) Package (Pcs. perCarton)
R -1 1 2 2 25 1.5 0.750 10
R - 2 1 3 3 25 1.5 1.150 10
R -3 1 2 2 25 1.5 1.250 10
R - 4 1 3 3 25 1.5 1.650 10
