Aluminium Telescopic Levelling Staves

Special Features:-

  • International Standard, produced under strict quality control management system.
  • High quality tempered  extruded aluminium alloy / seasoned wood is used.
  • Painted with strong water proof Powder Coated / Enamelled paints.
  • Bright colours are used in screen printing for easy on site visibility.


TECHNICAL DATA

Model Extended
Length
(Mtr.)
Nos.
of Sec.
Background
colour
Graduations Width
of the
Sec.(mm)
Thick.
of the
Sec. (mm)
Closed
Length
(mm)
Weight
(Approx)
(Kg.)
Package
(Pcs. per
Carton)
Front Back Side

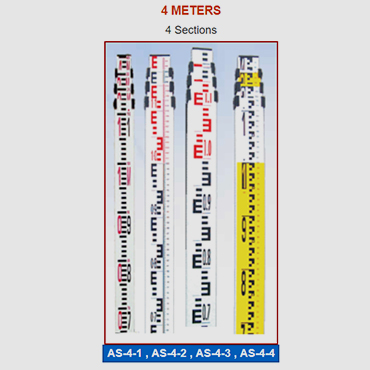

AS - 4-1 4 4 White 5 mm 1mm ---- 51 27 1215 1.650 10
AS - 4-2 4 4 White 5mm(E) ---- 1mm 51 27 1215 1.650 10
AS - 4-3 4 4 White 5mm(E) 1mm ---- 51 27 1215 1.650 10
AS - 4-4 4 4 Yellow 5mm 1mm 10mm 51 27 1215 1.650 10

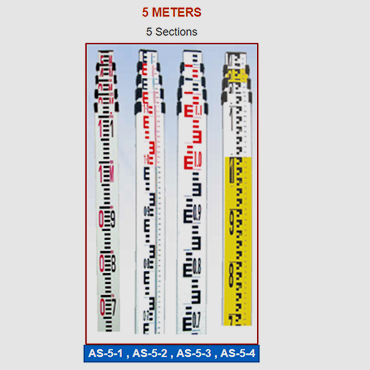

AS - 5-1 5 5 White 5mm 1mm ---- 51 27 1245 1.900 10
AS - 5-2 5 5 White 5mm(E) ----- 1mm 51 27 1245 1.900 10
AS - 5-3 5 5 White 5mm(E) 1mm ---- 51 27 1245 1.900 10
AS - 5-4 5 5 Yellow 5mm 1mm 10mm 51 27 1245 1.900 10

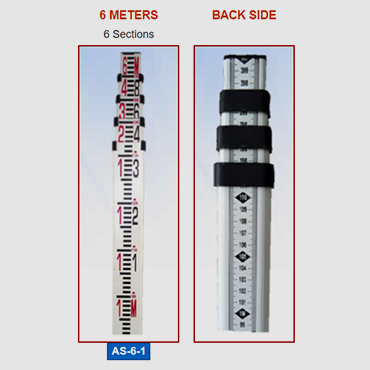

AS - 6-1 6 6 White 5mm 1mm ---- 51 27 1445 2.300 6




TECHNICAL DATA

Model Extended
Length (Mtr.)
Nos. of Sec. Front
Graduations (mm)
Width of the
Sec.(mm)
Thick. of the
Sec.(mm)
Closed Length
(mm)
Weight
(Approx)
(Kg)
Package
(Pcs. per Carton)
AS - 43 4 3 5 70 22 1600 1.500 10
AS - 53 5 3 5 70 22 1900 1.950 6
AS - 63 6 3 5 70 22 2300 2.400 6
