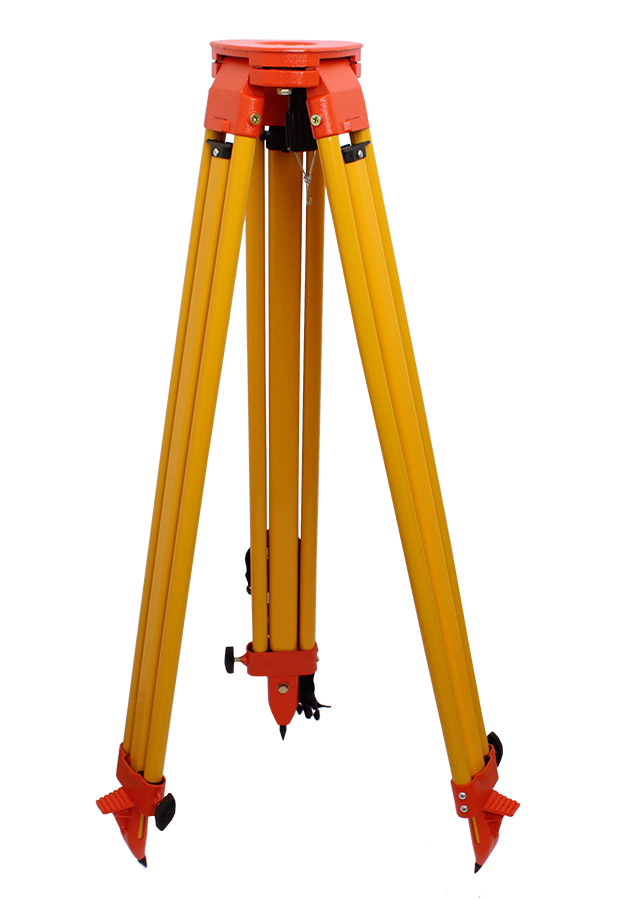

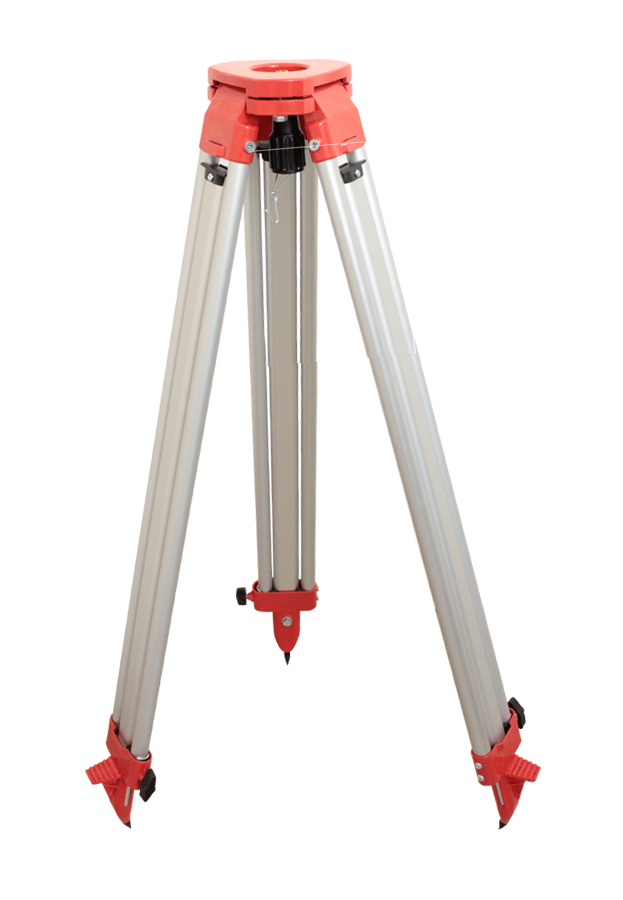

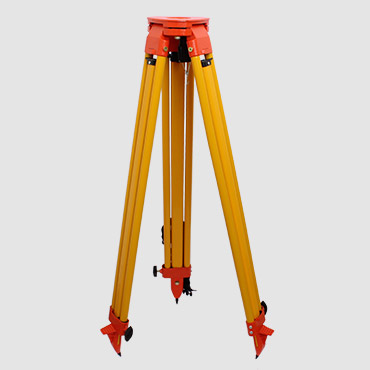

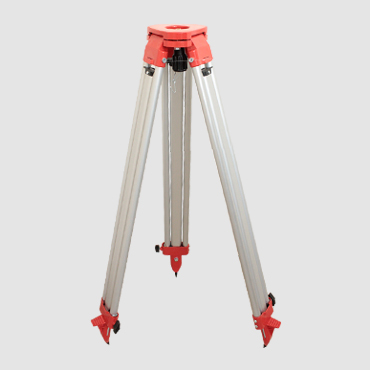

Aluminium Telescopic Tripods

Special Features:-

  • International Standard, manufactured under strict quality control management system.
  • Strong construction with sturdy designed & Tempered aluminium telescopic profiles.
  • Painted with long lasting water proof Powder Coated/Enamelled paints.
  • Easy operation due to the simplified hinge design which makes it easy when setting up the tripod.
  • Strong & trouble-free movable die casted aluminium parts.
  • Easy carrying shoulder belt.

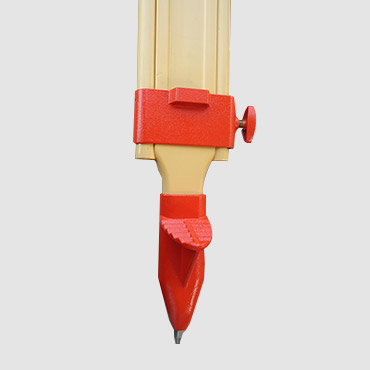

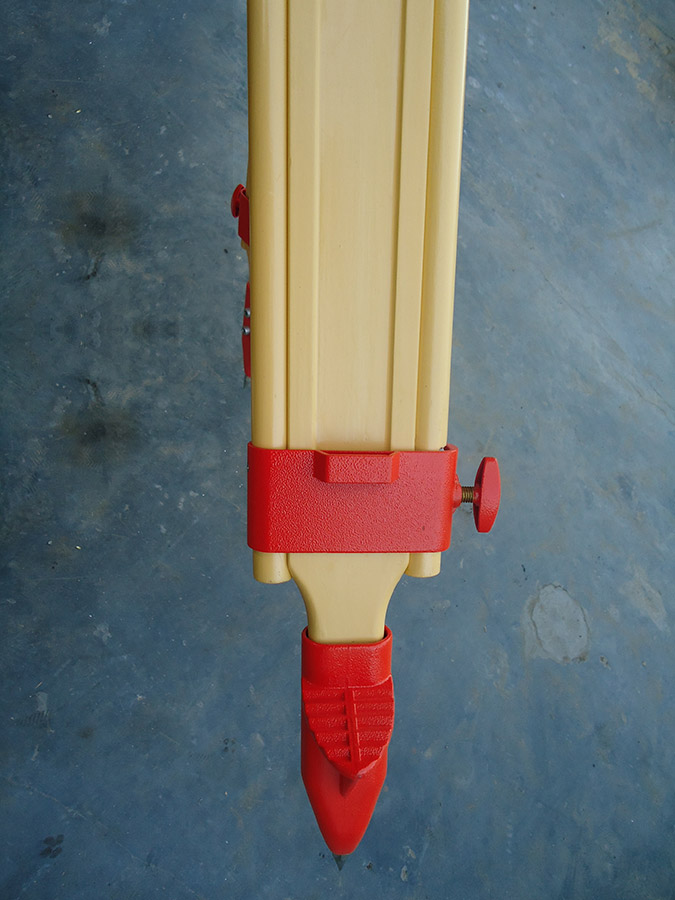

Twist Locking System

TECHNICAL DATA

Model Tripod
Head
Head
Size (mm)
Head
Bore (mm)
Extended
Length (mm)
Closed
Length (mm)
Head
Screw
Weight
(Approx Kg)
Package
(Pcs. per Carton)
AT - 1 Flat 150 60 1675 975 5/8"x11 or M16 3.650 6
AT - 2 Flat 138 55 1675 975 5/8"x11 or M16 3.600 6
AT - 3 Flat 135 50 1550 930 5/8"x11 or M16 3.200 6

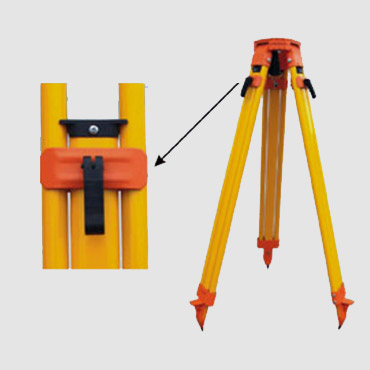

Quick Clamp Locking System
Aluminium Telescopic Quick Clamp Locking System

TECHNICAL DATA

Model Tripod
Head
Head
Size (mm)
Head
Bore (mm)
Extended
Length (mm)
Closed
Length (mm)
Head
Screw
Weight
(Approx Kg)
Package
(Pcs. per Carton)
AQ - 1 Flat 150 60 1625 975 5/8"x11 or M16 4.000 6
AQ - 2 Flat 138 55 1675 975 5/8"x11 or M16 3.600 6
AQ - 3 Flat 135 50 1500 930 5/8"x11 or M16 3.500 6
