Automatic Level

An Auto-Level is a Professional Levelling Tool used by Contractors, Builders, Land Surveying Professionals, or the Engineer who demands accurate levelling every time. Magnetic damping level is widely used in geodetic instruments, used for national measurement standards, building surveying and large machine installation.

This product can meet a variety of construction engineering and measurement requirements, has automatic compensation function, and can greatly improve the working efficiency and avoid the error rate.

  • Chinese patent, excellent shockproof function.
  • Excellent sealed structure for using any weather.
  • Exclusive closed magnetic field, magnetically-dampened compensator.
  • Friction-braked rotation and endless horizontal drive.
  • Prism for viewing circular level.

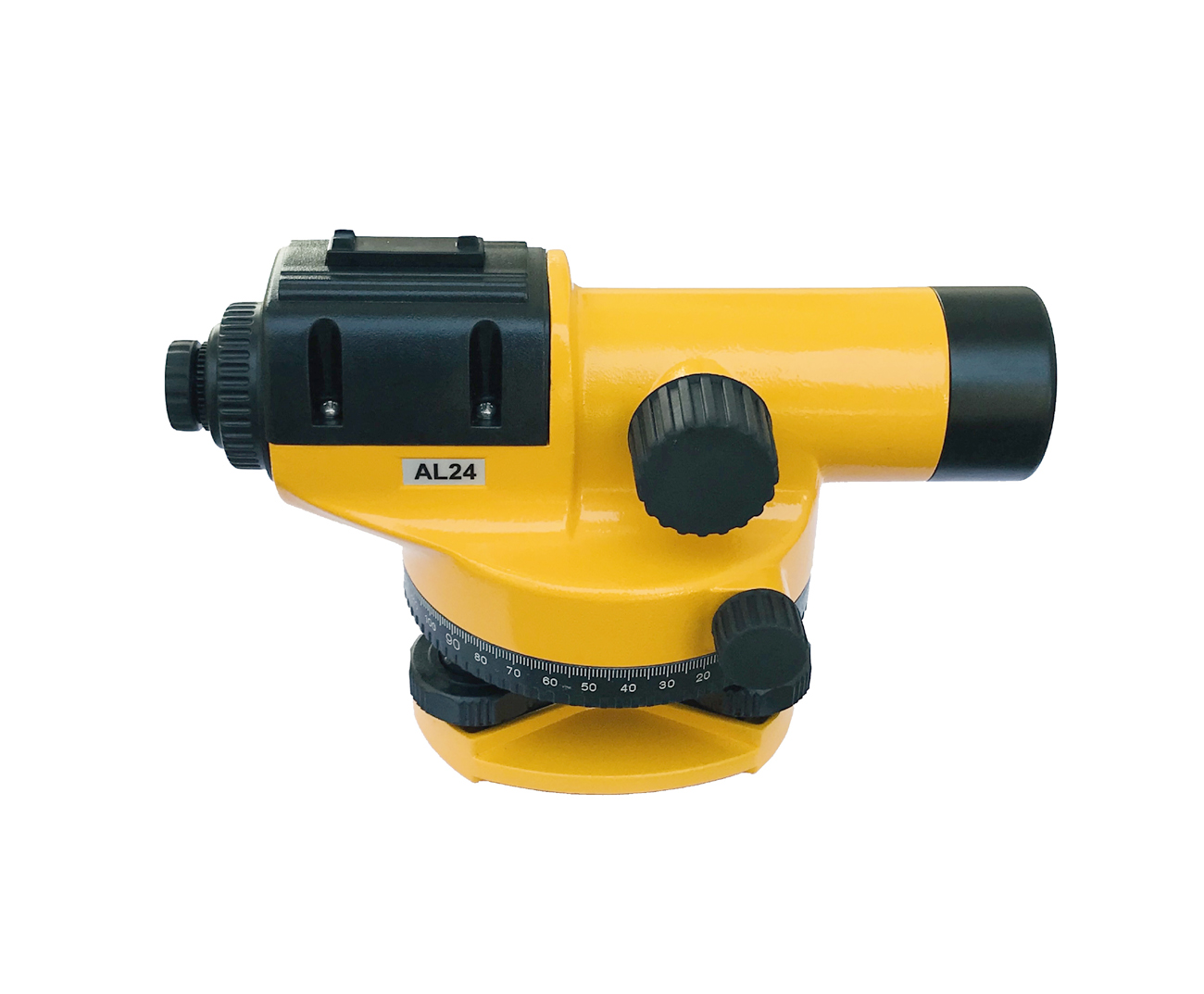

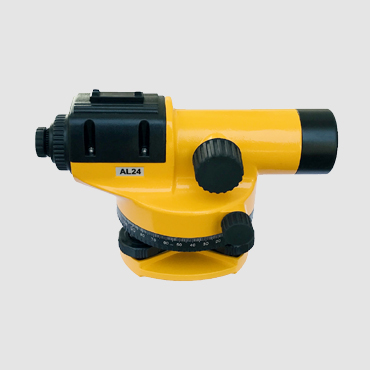

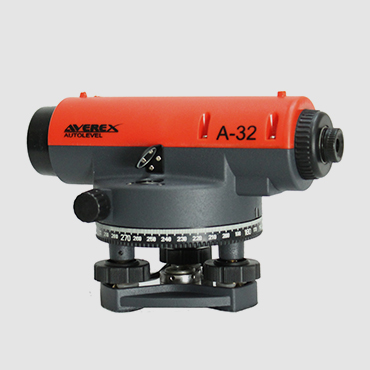

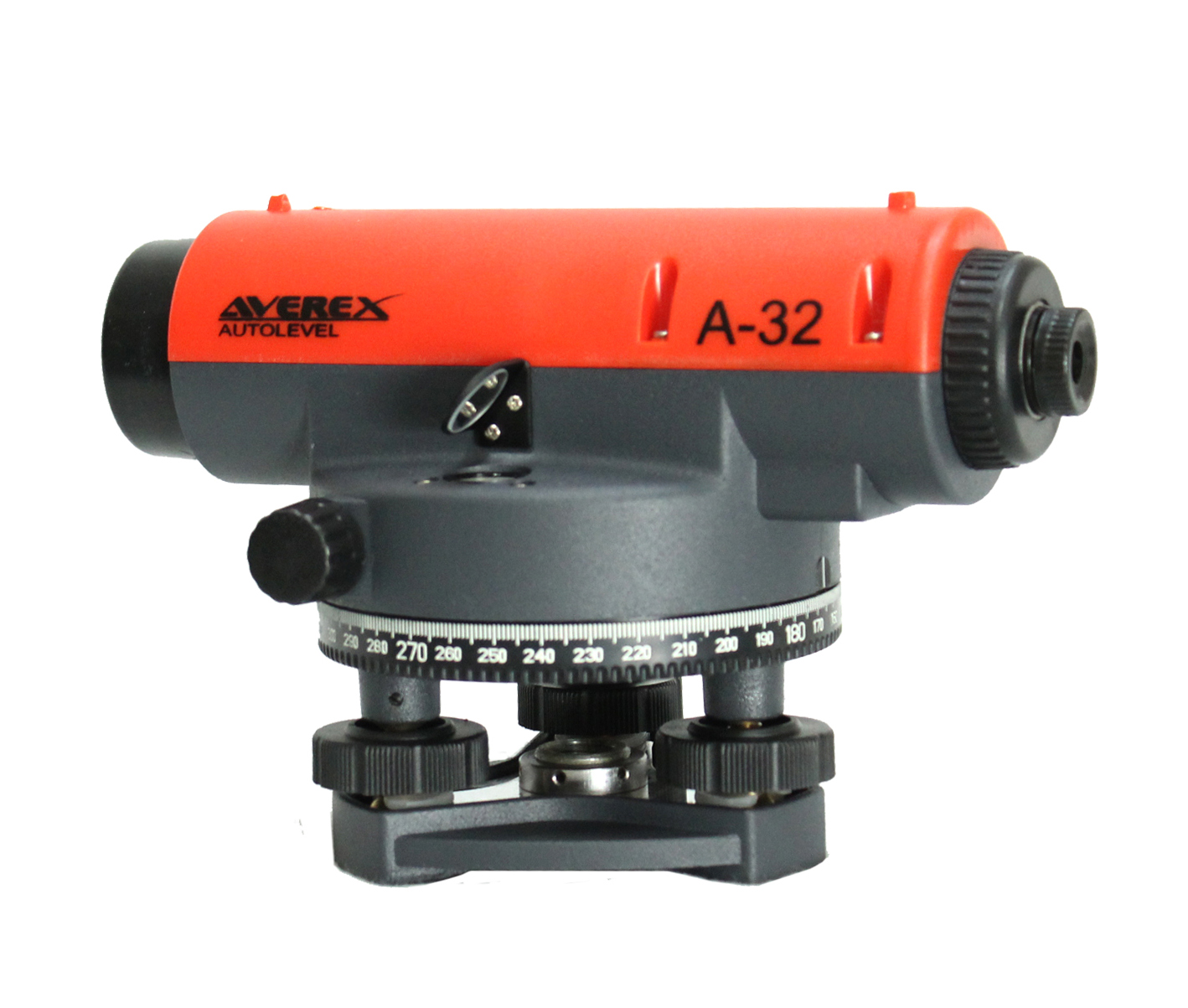

PARAMETERS AL24 AL32 A-32

Standard Deviation Per Kilometer Double - Run

2mm

1mm

1.5mm


Positive Image

Positive Image

Positive Image

Magnification

24X

32X

32X

Clear Objective Aperture

36mm

36mm

36mm

Field Of View

1°20’

1°20’

1°20’

Shortest Focusing Distance

0.65 m

0.65 m

0.4 m

Stadia multiplication constant

100

100

100

Stadia additive constant

0

0

0

Circular Bubble Precision

8’ /2mm

8’ /2mm

8’ /2mm

Horizontal Circle

360°

360°

360°

Compensator Type

Air suspension -Damping

Air suspension-Damping

Magnetic suspension-Damping

Working Range

±15’

±15’

±15’

Setting Accuracy ±0.3” ±0.3” ±0.3”

Screw Thread

M16 or 5/8”

M16 or 5/8”

M16 or 5/8”




PARAMETERS DSZ-32X B40

Standard Deviation Per Kilometer Double - Run

2mm

2mm


Positive Image

Positive Image

Magnification

32X

32X

Clear Objective Aperture

42mm

34mm

Field Of View

1°20’

1°20’

Shortest Focusing Distance

0.5 m

0.3 m

Stadia multiplication constant

100

100

Stadia additive constant

0

0

Circular Bubble Precision

8’ /2mm

8’ /2mm

Horizontal Circle

360°

360°

Compensator Type

Magnetic Suspension - Damping

Magnetic Suspension - Damping

Working Range

±15’

±15’

Setting Accuracy ±0.3” ±0.3”

Screw Thread

M16 or 5/8”

M16 or 5/8”

Dust proof

IP54

IPX6
